10kA 125A High Current Miniature Circuit Breaker

The APM3-125H is a high-current circuit breaker designed to handle demanding electrical environments. With a 125A rating, it is well-suited for high-voltage load applications and provides robust protection and control for high-current loads. This makes it an ideal choice for industrial settings and large-scale construction projects where reliable performance is critical.

Send Enquiry

Specifications
Product Characters
Data Download

Standard	IEC/EN60898-1	IEC/EN60947-2
Protection	Overcurrent and short circuit
Type of trip	Thermo-magnetic
Rated Current In	80,100,125A
Poles	1P, 1P+N, 2P, 3P,3P+N, 4P
Rated voltage Ue	240/415V~
Rated frequency	50/60Hz
Rated breaking capacity	6,000A	10,000A
Rated impulse withstand voltage (1.2/50) Uimp	4,000V
Dielectric test voltage at ind. Freq. for 1 min	2kV
Thermal release characteristic	(1.13-1.45) x In	(8-12) x In
Magnetic release characteristic	C:(5-10) x In, D:(10-20) x In
Electrical life	4,000 Cycles
Mechanical life	10,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Ambient temperature (with daily average≤35℃)	-5℃~+40℃, Max. 95%humidity
Terminal connection type	Cable/Pin-type busbar
Max. terminal size for cable	50mm2
Max. tightening torque	3.5N.m
Installation	Mounting on 35mm Din rail
Connection	From top and bottom

Circuit Diagram

ETEK MCB Circuit Diagram

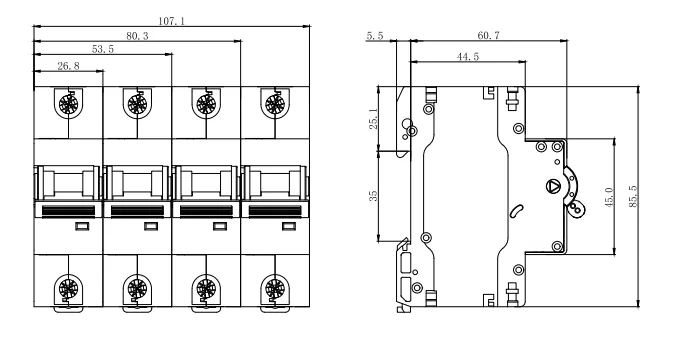

Installation size

ETEK High Current 10kA MCB EKM3-125H
