6kA Miniature Circuit Breaker-Shenzhen Anpow Technology Co., LTD.

6kA Miniature Circuit Breaker

APM1-125S Circuit Breaker has the characteristics of advanced structure, reliable performance, high breaking capacity(6kA) and beautiful appearance. It is mainly used for AC 50Hz or 60Hz, rated voltage 400V or below and rated working current 125A or below. It is used for overload and short-circuit protection of lighting, distribution lines, equipment in office buildings, residential buildings and etc. It can also be used for infrequent on-off operations and conversion of lines.

Send Enquiry

Specifications
Product Characters
Data Download

Standard	IEC/EN60898-1
Protection	Overcurrent and short circuit
Type of trip	Thermo-magnetic
Rated Current In	63A,80,100,125A
Poles	1P, 1P+N, 2P, 3P,3P+N, 4P
Rated voltage Ue	240/415V~
Rated frequency	50/60Hz
Rated breaking capacity	6,000A
Rated impulse withstand voltage (1.5/50) Uimp	4,000V
Dielectric test voltage at ind. Freq. for 1 min	2kV
Thermal release characteristic	(1.13-1.45) x In
Magnetic release characteristic	C:(5-10) x In, D:(10-20) x In
Electrical life	4,000 Cycles
Mechanical life	10,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Ambient temperature (with daily average≤35℃)	-5℃~+40℃, Max. 95%humidity
Terminal connection type	Cable/Pin-type busbar
Max. terminal size for cable	50mm2
Max. tightening torque	3.5N.m
Installation	Mounting on 35mm Din rail
Connection	From top and bottom

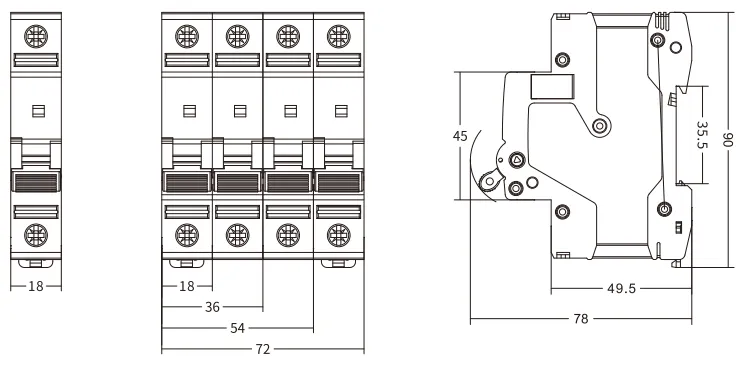

Dimensions

Circuit Diagram

Installation size

Power Inverter

6kA Miniature Circuit Breaker
