Type EV (A+DC6mA) Residual Current Device-Shenzhen Anpow Technology Co., LTD.

Type EV (A+DC6mA) Residual Current Device

APKL6-63EV Type EV RCD is a cutting-edge residual current device designed specifically for electric vehicle charging. This 63A RCD offers comprehensive protection against AC and DC residual currents, including 6mA DC leakage detection, and complies with IEC 62955 standards for the elevated level of safety in Mode 3 charging installations.

Send Enquiry

Specifications
Product Characters
Data Download

Standard	IEC61008-1,IEC61008-2, IEC62955
Protection	Ground fault
Type of trip	Electro-magnetic
Type of protection (electric leakage)	A & DC leakage current
Classification of RDC-DD	RDC-PD
No. of poles	2P(1P+N), 4P(3P+N), N Pole on left
Rated current In	16,25,32,40,63A
Rated voltage Ue	2P 240V~,4P 415V~
Rated frequency	50/60Hz
Rated sensitivity currents IΔn	30mA
DC tripping threshold (IΔdc)	6mA
Residual current off-time under IΔn	≤0.1s
Rated residual making and breaking capacity (IΔm)	500A(In≤40A), 10In (In＞40A)
Rated breaking capacity	10,000A
SCPD fuse	10kA
Rated impulse withstands voltage (1.5/50) Uimp	4000V
Dielectric test voltage at ind. Freq. for 1min	2.5kV
Electrical life	2,000 Cycles
Mechanical life	4,000 Cycles
Contact position indicator	Yes
Ground fault indicator	Yes
Protection degree	IP20
Ambient temperature	-25℃ to 55℃, Max.95% humidity
Terminal connection type	Cable/Pin-type busbar/U-type busbar
Max. terminal size for cable	35mm2
Max. tightening torque	2.5Nm
Installation	Mounting on 35mm DIN rail
Connection	From top and bottom

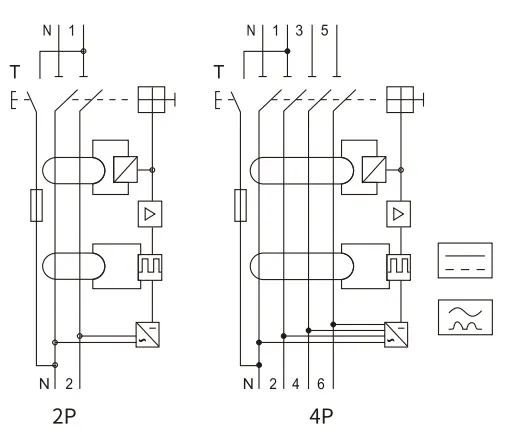

Circuit Diagram

ekl6-63ev-circuit-diagram

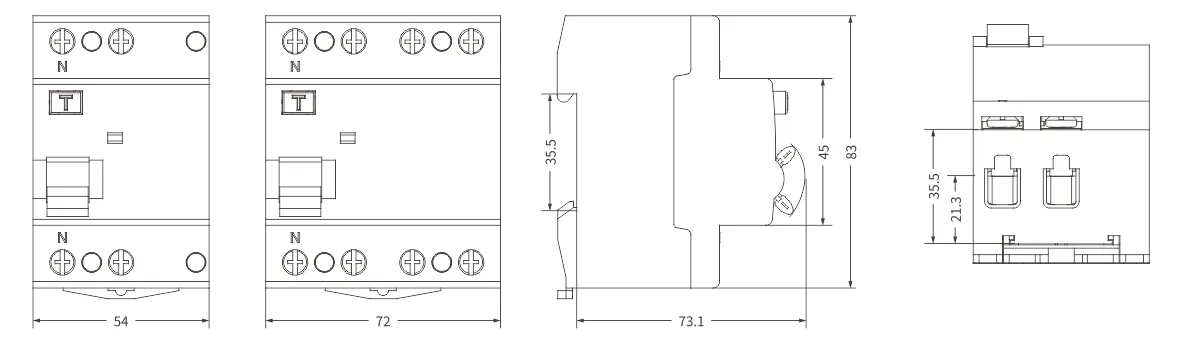

Installation size
