High-Performance Residual Current Circuit Breaker (RCCB)

APKL11-63 RCCB is suitable for a variety of electrical systems, including residential, commercial, and industrial fields, and can provide reliable leakage protection to ensure the safe operation of electrical systems. The maximum working current reaches 63A. It is well designed and has excellent performance. It can quickly cut off the power supply in a short time to prevent fire and electric shock accidents caused by leakage and protect the life and property safety of users.

Send Enquiry

Specifications
Product Characters
Data Download

Standard	IEC/EN61008-1
Protection	Ground fault
Type of trip	Electro-magnetic
Type of protection (electric leakage)	AC, A
No. of poles	2P(1P+N), 4P(3P+N), N Pole on right
Rated current In	16,25,32,40,63A
Rated sensitivity currents I△n	10,30,100,300mA (10mA only for In=16-25A)
Residual current off-time under I△n	≤0.1s
Rated residual making and breaking capacity(I△m)	500A(In≤50A),10In (In>50A)
Rated voltage Ue	1P+N: 230/240V~, 3P+N: 400/415V~
Rated frequency	50/60Hz
Rated breaking capacity	6,000A, 10,000A
SCPD fuse	EKL11-63: 6kA, EKL11-63H: 10kA
Rated impulse withstands voltage (1.5/50) Uimp	4000V
Dielectric test voltage at ind. Freq. for 1min	2kV
Electrical life	2,000 Cycles
Mechanical life	4,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Ambient temperature	-25℃ to +55℃, Max.95% humidity
Terminal connection type	Cable/Pin-type busbar/Fork-type busbar
Max. terminal size for cable	25mm2
Max. tightening torque	2.5N.m
Installation	Mounting on 35mm DIN rail
Connection	From top and bottom

Circuit Diagram

etek ekl11-80 circuit diagram

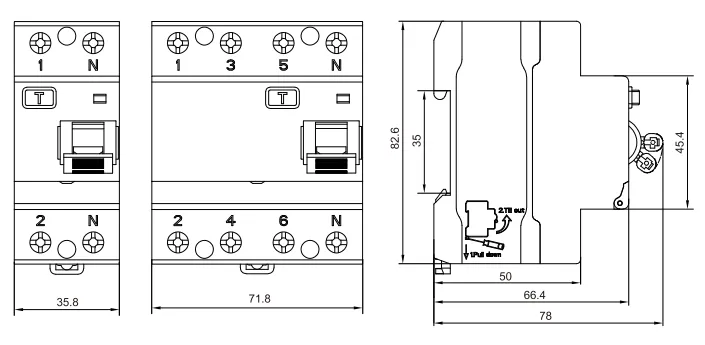

Installation size

etek rccb ekl11-80 size
