High-Performance Residual Current Circuit Breaker (RCCB)-Shenzhen Anpow Technology Co., LTD.

Specifications
Product Characters
Data Download

Standard	IEC/EN61008-1
Protection	Ground fault
Type of trip	Electro-magnetic
Type of protection (electric leakage)	AC, A, G, S
No. of poles	2P(1P+N), 4P(3P+N), N Pole on right
Rated current In	80, 100, 125A
Rated sensitivity currents I△n	30,100,300mA
Residual current off-time under I△n	≤0.1s
Rated residual making and breaking capacity(I△m)	10In (In>50A)
Rated voltage Ue	1P+N: 230/240V~, 3P+N: 400/415V~
Rated frequency	50/60Hz
Rated breaking capacity	EKL1-125: 6,000A, EKL1-125H: 10,000A
SCPD fuse	EKL1-125=6kA, EKL1-125H=10kA
Rated impulse withstands voltage (1.5/50) Uimp	4000V
Dielectric test voltage at ind. Freq. for 1min	2kV
Electrical life	2,000 Cycles
Mechanical life	4,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Ambient temperature	-25℃ to +55℃, Max.95% humidity
Terminal connection type	Cable/Pin-type busbar/Fork-type busbar
Max. terminal size for cable	50mm2
Max. tightening torque	2.5N.m
Installation	Mounting on 35mm DIN rail
Connection	From top and bottom

Circuit Diagram

etek rccb ekl1-125h circuit diagram

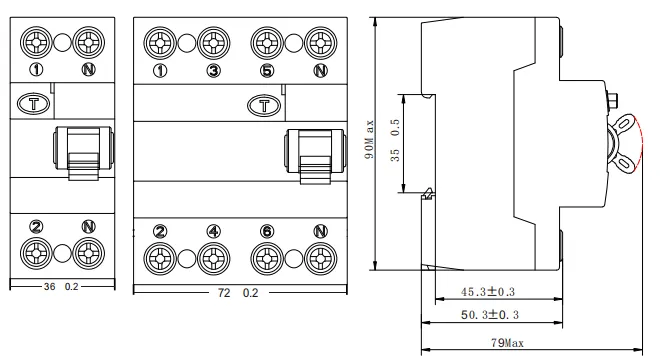

Installation size

rccb ekl1-125h size
